L350 Plus

Overview　Features　Plus Packs　Video　Gallery　Documents　FAQs BUY

Next-gen OCP technology

L350 Plus のプロセッシングパワーの割り振りと I/O コンフィグレーションもまた、とてもフレキシブルにセットアップできます。 L350 Plus は 600ch のインプットと 600ch のアウトプットが接続可能であり、96kHz で 216 のシグナルパスが用意されています。216 のシグナルパスはチャンネル、Stem Group、Aux、マスターとして使用し、チャンネルのコンフィグレーションはモノ、ステレオまたは LCR としてフォーマットできます。 216 のシグナルパスは 168 の Full プロセッシングパス、48 の Dry プロセッシングパスとして用意されており、目的に合わせて Full と Dry のパスを構成して使用します。その他独立した 32 x 36 のアウトプットマトリクスがあります。

L350 Plus Local I/O

L350 is equipped with a fully featured collection of Input and Output connectivity with the capacity to serve both Front of House and Monitor applications. L350 provides a versatile collection of local I/O built into the control surface so can operate without the use of any Stageboxes if required and has good connectivity for local peripherals when used in a pure FOH role. SSL Live consoles feature auto detection so identify any SSL Live I/O connected within the software routing pages.

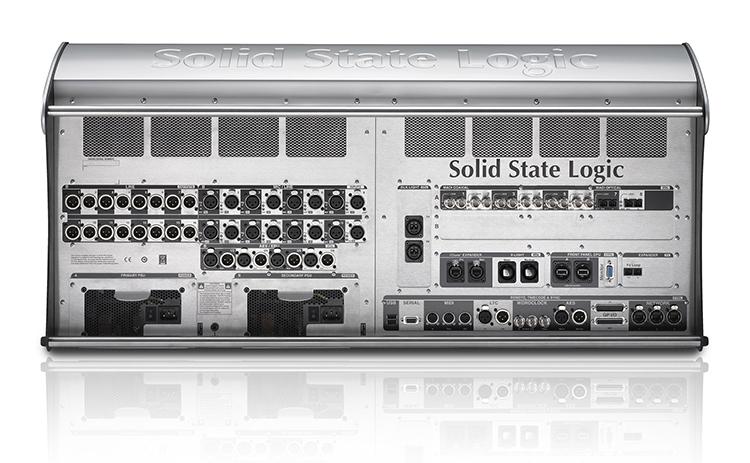

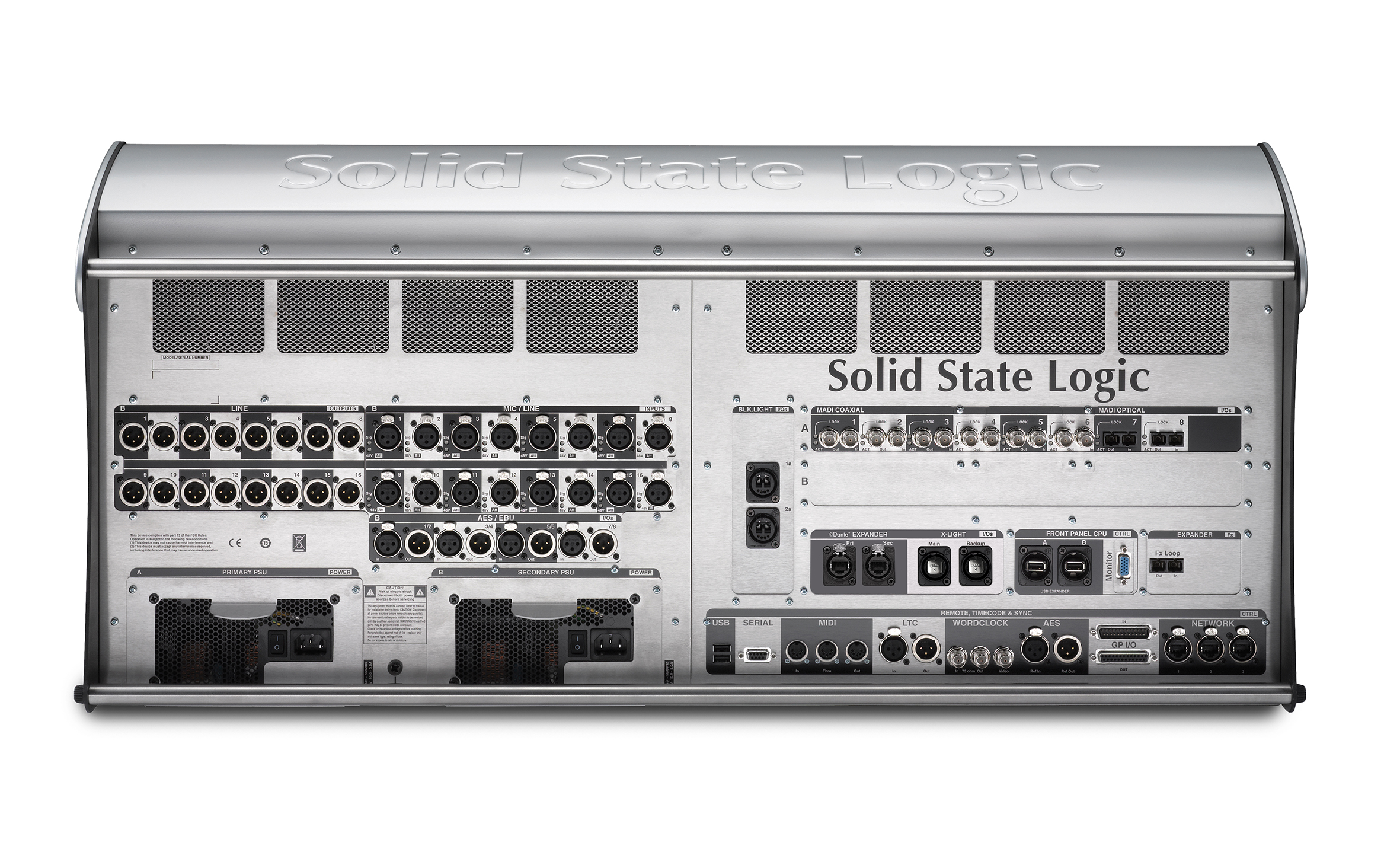

L350 local analogue I/O configuration; 16 mic/line inputs, 16 line outputs, 2 Headphone/Monitor outputs. AES/EBU digital I/O configuration: 4 pairs of inputs and 4 pairs of outputs. AES/EBU I/O has fully variable sample rate conversion. Standard MADI port configuration: 3 redundant pairs of coaxial and 1 redundant pair of optical. If redundancy is not required, these connections can be independent, providing a maximum of eight ports. In addition there is a separate optical MADI port (out/in), designed for use as an ‘FX Loop’ for connecting an external FX processing such as a system using Waves Multirack or a VST effects host. The standard configuration has no SSL Blacklight II connectors but there is an option to add one redundant pair. A Dante card option is also available offering 32x32 channels of I/O at 96 kHz (or 64x64 channels at 48kHz) over a redundant Dante connection. An optional redundant pair of SSL X-Light connectors provide 256 bi-directional channels at 96kHz between console and stage using a single cable with ruggedised connectors. The back panel also accommodates connectors for MIDI, LTC, Wordclock and GP I/O. A 2nd redundant power supply is standard.

Six consoles one soul.

SSL Live コンソールは、L650、L550 Plus、L450 、L350 Plus 、L200 Plus 、L100 Plus の 6 つのモデルが用意されています。 SSL においては、コンパクトであることは、何らかの妥協や機能及び品質の減少を意味しません。もちろん品質にも違いはなくリモート I/O ユニットも共有でき、それぞれのモデルの違いは物理的な大きさと使用できるチャンネル処理数の制限、扱える I/O の数となります。全モデル共に洗練された使いやすいコンソールで SSL のサウンドを余すところなく提供します。

SSL Live コンソールシリーズには６つのモデルがあり、全く同一のプロセッシングコアやオーディオコンバーターを使用しており、同じリモート I/O を共有することも可能です。全てのモデルで同じフェーダーパネルを使用しています。マスタータイルとコントロールタイルは違ったレイアウトとなっていますが、同様の機能は同じ位置に配置されており混乱を招くことはありません。全モデルのコンソールで同じソフトウェアを使用しており、アーキテクチャーやプロセッシング､ルーティングに関して完全に互換が取れています。

Integrated L-ISA Control

SSL Live consoles bring you the power and creativity of L-ISA directly from the console surface. L-ISA technology brings together innovative loudspeaker configurations and object-based mixing and processing tools, breaking new ground for live touring, theatre and fixed installation events.

Our collaboration with L-ISA, offers tightly integrated control of L-ISA immersive loudspeaker systems from any of our Live consoles. L-ISA sources can be associated with mono or stereo console Channels or Stems, providing full control of L-ISA Pan, Distance, Width, Elevation and Aux Send level for each source, plus L-ISA Master level control.

Watch the SSL Live V4.11 overview video to find out more.

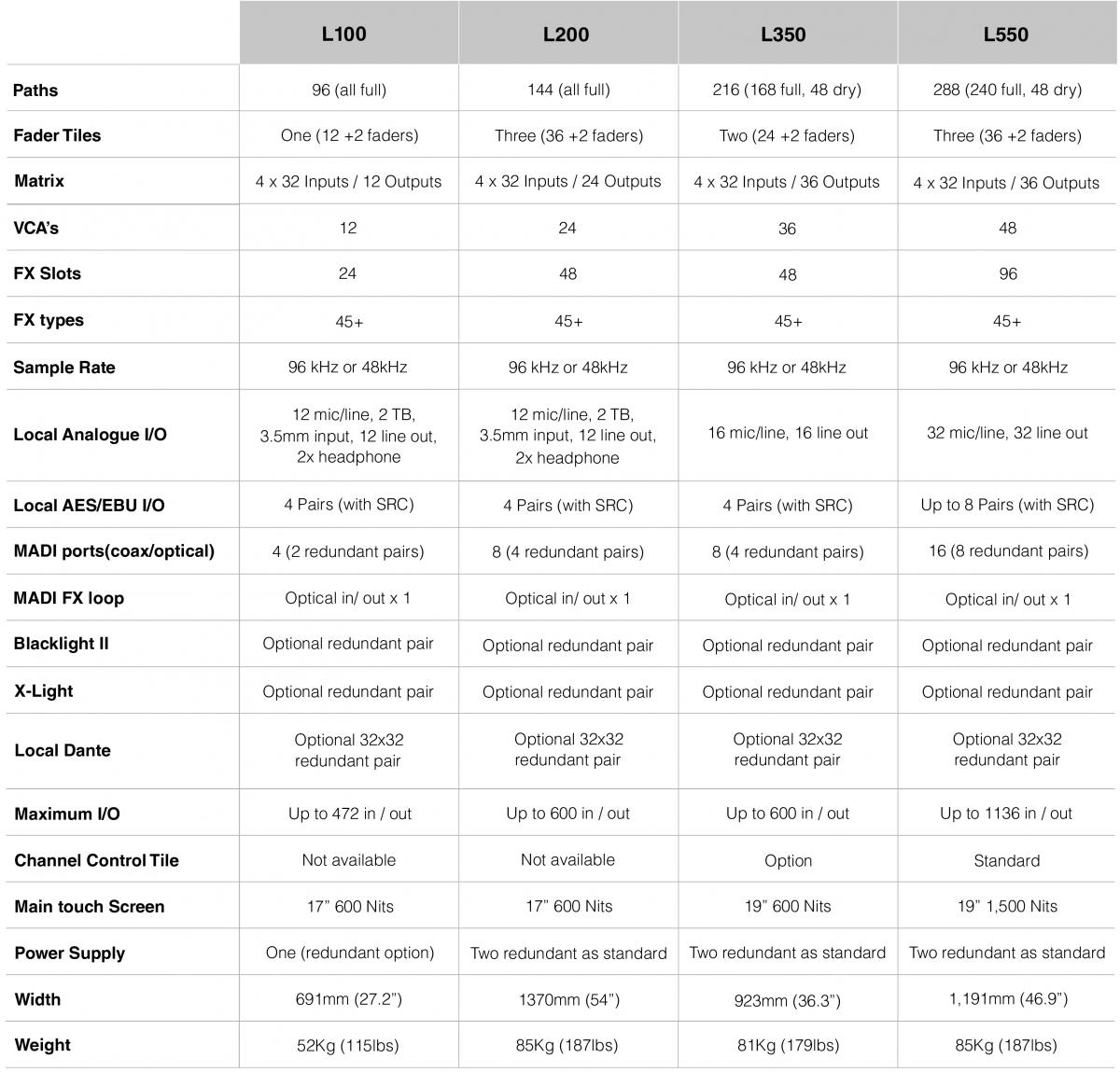

各モデルの違いは、物理的な大きさと使用できるチャンネル処理数の制限、扱える I/O の数となります。
詳しくは表をご覧ください。

Inventory which can scale with your production requirements has never been more important. Alterations in event location, artists technical requirements and the growing need to provide dedicated mixes for broadcast and OTT/streaming often present additional processing overheads on your mixing console. As part of the new SSL live V5.0 Software, Plus Processing Packs are available for L100, L200, L350 and L550 consoles, increasing the SSL Live consoles DSP in key areas, including: Input Channels, Stem Group, Auxes and Masters.

All new SSL Live consoles have Plus Packs pre-installed. Speak to your SSL Live representative about installing a Plus Pack on your L100, L200, L350 and L550 console inventory.

SSL Live Console Overview

A video introduction to the user interface of the SSL Live console.

SSL Live Console Overview in Spanish

SSL at The Royal Birmingham Conservatoire - Part 1

Part 1: The new £57 million Royal Birmingham Conservatoire building has officially opened its doors. It's a milestone development that elevates the Conservatoire facilities to world-class status and includes a recording and live sound production infrastructure without compromise, and with SSL very much at its heart. The new equipment list includes four SSL Live consoles and five SSL SuperAnalogue consoles,…

SSL at the Royal Birmingham Conservatoire, Part 2

Part 2: The new £57 million Royal Birmingham Conservatoire building has officially opened its doors. It's a milestone development that elevates the Conservatoire facilities to world-class status and includes a recording and live sound production infrastructure without compromise, and with SSL very much at its heart. The new equipment list includes four SSL Live consoles and five SSL SuperAnalogue consoles,…

Jay Rigby, Front of House Engineer, Queens of the Stone…

Jay Rigby has chosen the SSL L500 console for Front of House duties on the recent Queens of the Stone Age world tour, supplied by Eighth Day Sound. In this interview, at the Eden Sessions UK, he talks about his creative approach to the QOTSA signature sound, dealing with mid-range madness, working with a 'variable' set-list, and the role the L500 console plays in everything.

Antony King Interview Part 2 - Front of House Engineer…

In Part 2 of this interview, Depeche Mode's Front of House Engineer Antony King talks about his choice of SSL Live L500 consoles, how he sets up and uses those consoles, and offers some real world advice on live drum production, reaching the back of the stadium, as well as spilling the beans on Dave Gahan's vocals.

Chris Stephens: FOH for Jason Aldean with SSL L500

Chris Stephens, FOH Engineer for Jason Aldean talks to SSL about the L500 live console.

Underworld on Tour with SSL Live

Rick Smith and Karl Hyde talk about using the SSL L500 console live on stage.

Rob Ziemba, Monitors, Chance The Rapper.

Monitor Engineer Rob Ziemba talks about his experiences with the SSL L500 console during the latest Chance The Rapper tour.

Kyle Bulmann, FOH, Chance The Rapper

Front of House Engineer Kyle Bulmann talks about his experience with the SSL L500 Plus live console during the latest Chance The Rapper tour.

The Analogues - Remko Luijten and Ger Arts

The Analogues is an extraordinary band with an ambitious mission. The aim is to recreate, live, the last six Studio albums of The Beatles using the same instruments, amplifiers, and arrangements. The band has tracked down and restored period instruments from all over the world, such as a rare Lowrey Heritage Deluxe Organ, as used on the introduction to Lucy In The Sky With Diamonds. Remko Luijten,…

Antony King Interview Part 1 - Front of House Engineer…

Antony King is the fingers behind the faders behind Depeche Modes's epic Global Spirit Stadium Tour that spans 2017 and 2018. In Part 1 of this interview he talks about his own background and how he prepares for a tour like this, as well as offering some insight into the technical and creative aspects of a Depeche Mode gig, and how you get that kind of gig in the first place.

The Church At Brook Hills

A video interview with Director of Technology, Matt Glover, and Production Manager Landon Robertson - church mixing, loudness, and technology choices. The Church at Brook Hills (Alabama) uses SSL L300s at FOH and monitors.

Kenny Kaiser, Front of House Engineer, The Killers

During sound check at the Mohegan Sun Arena, Front of House Engineer Kenny Kaiser takes time out to share wisdom from his years or experience in live sound engineering, and from life on the road with US rock phenomenon, The Killers.

Andrew Stone, Church On The Move

How do you get a church to rock? Respected Production Manager and Front of House Engineer Andrew Stone talks about how Tulsa's Church On The Move has carved character into its message, and why he switched from all-analogue to SSL Live.

Chris Pollard: FOH Engineer for Mumford & Sons

Front of House Engineer Chris Pollard has been touring with Mumford & Sons since their first album and is currently in the midst of the Band’s epic 'An Arrow Through The Heartland' tour. Pollard's console of choice for the tour is the SSL L500 live console...

Brian Montgomery, Monitors - Santana on SSL Live L500

Brian Montgomery (Monitors, Santana) shares his experiences in transitioning to and touring worldwide with the SSL LIve L500 console.

Michael Montanari: SSL Live at Christ Community Church,…

Christ Community Church (Illinois) Technical Director Michael Montanari has specified SSL L500 consoles for both Front of House and Monitor positions at its St Charles campus. In this video he talks about audio production at the church and his experiences with SSL Live.

Mark Dowdle on SSL Live L500

Mark Dowdle, FOH Engineer for Gloria Estefan, Steely Dan and many more talks to SSL about his experiences using the L500.

Chris Rabold: FOH for Kenny Chesney with SSL Live SSLvideos

Engineer Chris Rabold talks to SSL about his experiences using the SSL L500 live production console at FOH for Kenny Chesney.

Synchron Stage Vienna Pt 2

Herb Tucmandl, CEO and Founder of Vienna Symphonic Library and Synchron Stage Vienna reveals the story behind the creation of this fantastic new facility.

Synchron Stage Vienna Pt1

Successful sample library and virtual instrument developer Vienna Symphonic Library has opened a new large-scale, high-end scoring stage and studio complex, Synchron Stage Vienna. The complex features two Duality consoles, an L500 live console and a huge Dante network powered by SSL Network I/O.

L350 - Documents

Software downloads for this product are delivered from within your 'My SSL' registered user profile, accessed via the link in the top right corner of this page. You will need to register if you want to access software updates.
